CellScan BMS

CellScan BMS

The latest domestic products with improved performance compared to existing products Battery Monitoring System


JSDATA Smart Cubic:
Jaeshininformation Co., Ltd 17, Deogan-ro 104beon-gil, Gwangmyeong-si, Gyeonggi-do, Gwangmyeong Station M Cluster B106, Phone: 031-388-7874, E-mail : support@jsdata.co.kr
▶ Products conforming to the IEEE 1188-2005 and IEEE 450 recommendations, which are the inspection standards for lead-acid batteries.

▶ A product that constantly measures voltage, temperature, and internal resistance of each cell/module

▶ Using standard CAN 2-wire common ring-bus communication cable for easy installation and management

▶ Very fast measurement time for all 400 cells (total measurement time for voltage and temperature within 1 second)

▶ Very fast measurement speed with CAN (Controller Area Network) method
▶ Instantaneous power failure (less than 0.5 seconds) event can be recorded with high-speed sampling function
▶ Simultaneous measurement of cell voltage for each cell every second during discharge
▶ Charge ripple current measurement and FFT analysis
▶ Measured data can be checked in real time through the analysis program CellScan software.

▶ Provides statistical information of all battery groups managed by CellScan

▶ Real-time alarm management and history information provision

▶ Provides discharge real-time management and history information / discharge replay function

▶ Provide ripple current value of charge/discharge current and record ripple current waveform with fast Fourier transform technology

▶ Provides Excel and PDF file output and report output function

▶ Provide e-mail and SMS transmission function / Accept SNMP protocol for interworking with upper system (option)

CellScan Master


▶ Measurement data: bath voltage, bath current, ambient temperature, ripple current

▶ Measurement period: 0.1sec

▶ mark

- Power and system anomalies

- Over regulation voltage / current / ambient temperature

- Cell voltage / cell temperature / cell internal resistance abnormal

- Custom alarm designation (6EA)

CellScan Sensor

▶ Measurement data: cell voltage, cell internal resistance, cell temperature ▶ Measurement period: cell voltage and cell temperature: 1sec
                    Cell internal resistance: user selectable (settable)
▶ mark
  - CAN ID and CAN communication error
  - If the FND for CAN ID display flickers, CAN communication is abnormal.
  - More than cell measurement data

CellScan Master (Master)

CS-Sensor (Sensor)

System Capability

Measuring Capability

cell sensor
100 controls



LV sensor

(for 2V/4V/6V) Accepts up to 4 cells per module




crude voltage, current
1 each

HV sensor

(For 8V/12V) Accepts up to 4 cells per module



communication port



CAN 2ea (Ring configuration) , Ethernet 1ea,

1 x RS-232
communication port



2 CAN (Ring configuration)



ambient temperature



1 each
temperature Senser


4 (whole cell temperature measurement is optional)





Measuring Speed

Measuring Speed

crude voltage

0.1second

400 total cells

Individual voltage and temperature measurement

1 second

crude current



0.1second


400 total cells Individual cell internal resistance measurement
The number of times can be set



Range & Accuracy

Range & Accuracy

Joe voltage



0 ~ 1,000VDC / ±0.5% of full scale

cell voltage

0 ~ 9.0V / ±0.1% of ±10mV ( 2V용)

Joe current



0 ~ 1,000ADC / ±1.0% of full scale

0 ~ 17.0V / ±0.1% of ±20mV (12V용)

Joe Ripple



0 ~ 1,000Ap-p / ±5.0% of full scale

 cell temperature



-20 ~ +80℃ / ±0.5℃

ambient temperature



- 20 ~ 80℃ / ±0.5℃

cell internal resistance



0 ~ 100.0mΩ/ ±2.0% of full scale

Resolution

Resolution

Joe voltage



0.1V / Adjustment Current: 0.1A



cell voltage

1mV

Joe Ripple



0.1Ap-p / Ambient temperature: 0.1℃



cell temperature



0.1 ℃



cell internal resistance



0.001mΩ

Dimensions & Environment

Dimensions & Environment

Size

245 × 170 × 45㎜

Size

크기: 128 × 61 × 35㎜

certification, operating environment

CE

Temperature : 0 ~ 50 ℃ / Humidity : Below 80%RH



certification
operating environment





CE

Temperature : 0 ~ 50 ℃ / Humidity : Below 80%RH

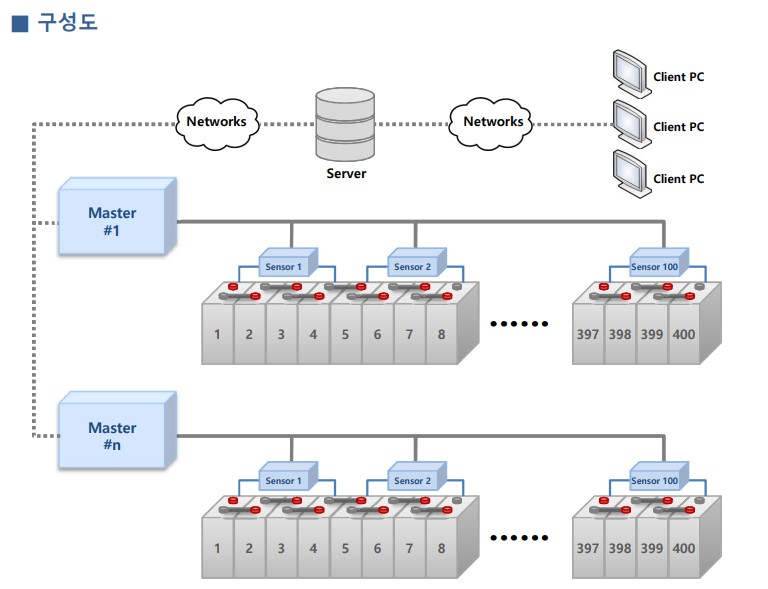

Features Summary





• Requires 1 Master per battery pair

• One Master accommodates up to 100 Sensors,
Measurement of bath voltage, bath current, ambient temperature and ripple current

• Sensor's CAN communication data to Ethernet data
Transform and pass data to server

• Power and system abnormalities, regulated voltage/current/ambient temperature
Alarm in case of abnormal cell voltage/cell temperature/cell internal resistance
Features Summary





• LV sensor and HV sensor applied depending on battery voltage

• High reliability as CAN communication cable is configured in a ring

• CAN communication error when FND for CAN ID indication flickers

• Cell voltage per cell, cell internal resistance, and cell temperature are measured Cell voltage and temperature (1 second), cell internal resistance (user selectable) measurement cycle can be selected CAN ID and CAN communication error, cell error indication





■2 Volt Installation Photos



■2 Volt 24 Cell Charger Installation Picture

■12 Volt Installation Photos



2014. 04: Traffic Safety Authority BMS establishment

2014. 09 : Korea Exchange BMS installation

2014. 11 : Korea Exchange BMS installation

2015. 06 : KLID BMS establishment

2015. 06 : Lotte Information Communication Gasan IDC BMS establishment

2015.0 9 - 2018.10 : Hyundai Information Technology BMS establishment

2016. 03 : Cheil Medical Foundation Cheil Hospital BMS construction

2016. 11 - 2017. 04 : Korea Expressway Corporation BMS construction

2016. 11 : Samsung Advanced Institute of Technology BMS installation

2017. 06 : Cargill Purina plant BMS installation

2017. 08 : BMS installation at Poseung Power Plant in Pyeongtaek

2017. 12 : Tokyo Electric Power Corporation branch BMS installation

2018. 05 : Ulsan Thermal Power Plant BMS installation

2018. 07 : KEPCO Gwangju Jeonnam Headquarters BMS installation

2018. 11 : NH Investment & Securities BMS installation

2019. 03 : KEPCO Donghae Electric Power Branch BMS installation

2019. 04 : Cowon Energy BMS installation

2020. 01 : Jipilos Jeju wind power generation BMS installation

2020. 06 : KEPCO Daejeon Sejong Chungnam headquarters BMS installation

2020. 09 : Yongsan KT IDC emergency generator BMS installation

2020. 09 : Ulleungdo radar base BMS installation

2020. 12 : BMS delivery to Hokkaido Electric Power Branch in Japan

2021. 01 : Daejeon Minting Corporation IDC Headquarters BMS installation

2021. 09 : Installation of BMS for local waterworks offices of Korea Water Resources Corporation

2021. 10 : Digital Reality Sangam-dong IDC center emergency generator BMS installation
